Examination Weightings

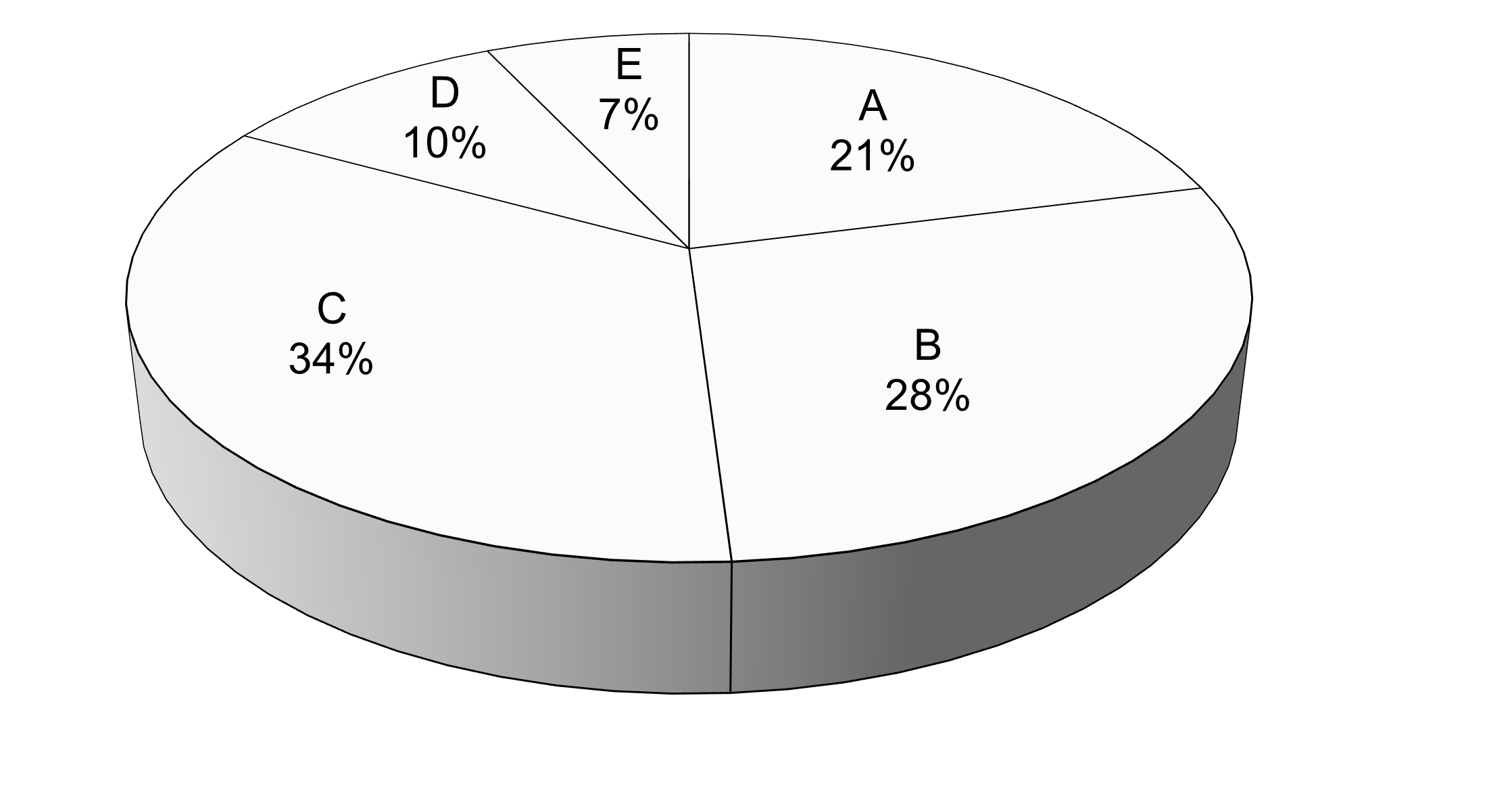

Pie Chart of Red Seal Examination Weightings

This pie chart represents a breakdown of the interprovincial Red Seal examination. Percentages are based on the collective input from workers from the trade from across Canada. The Task Matrix on the next pages indicates the breakdown of tasks and sub-tasks within each Major Work Activity and the breakdown of questions assigned to the Tasks. Interprovincial examinations for this trade have 120 questions.

Sheet Metal Worker - Task Matrix and Weightings

Major Work Activity A - Performs common occupational skills 20%

Task A-1 Performs safety-related functions 22%
- A-1.01 Uses personal protective equipment (PPE) and safety equipment
- A-1.02 Maintains safe work environment
- A-1.03 Performs lock-out and tag-out procedures
Task A-2 Uses and maintains tools and equipment 39%
- A-2.01 Uses hand and portable power tools
- A-2.02 Uses shop tools and equipment
- A-2.03 Uses gas metal arc welding (GMAW) equipment
- A-2.04 Uses resistance spot welding equipment
- A-2.05 Uses gas tungsten arc welding (GTAW) equipment
- A-2.06 Uses shielded metal arc welding (SMAW) equipment
- A-2.07 Uses oxy-fuel and plasma arc cutting equipment
- A-2.08 Uses soldering and brazing equipment
- A-2.09 Uses measuring and layout equipment
- A-2.10 Uses testing and inspection devices
- A-2.11 Uses stationary and mobile work platforms
- A-2.12 Uses hoisting, rigging and positioning equipment
Task A-3 Organizes work 26%
- A-3.01 Uses trade-related documentation
- A-3.02 Interprets drawings
- A-3.03 Organizes materials and equipment for project
- A-3.04 Performs basic design and field modifications
Task A-4 Uses communication and mentoring techniques 13%
- A-4.01 Uses communication techniques
- A-4.02 Uses mentoring techniques

Major Work Activity B - Performs fabrication 31%

Task B-5 Performs pattern development 33%
- B-5.01 Develops patterns using simple and straight line layout
- B-5.02 Develops patterns using parallel line method
- B-5.03 Develops patterns using radial line method
- B-5.04 Develops patterns using triangulation method
- B-5.05 Uses computer technology for pattern development
Task B-6 Fabricates sheet metal components for air and material handling systems 42%
- B-6.01 Cuts ductwork, fittings and components
- B-6.02 Forms ductwork, fittings and components
- B-6.03 Insulates ductwork, fittings and components
- B-6.04 Assembles ductwork, fittings and components
- B-6.05 Fabricates dampers
- B-6.06 Fabricates hanger systems, supports and bases
Task B-7 Fabricates flashing, roofing, sheeting and cladding 9%
- B-7.01 Cuts metal for flashing, roofing, sheeting and cladding
- B-7.02 Forms flashing, roofing, sheeting and cladding
Task B-8 Fabricates specialty products 16%
- B-8.01 Cuts material for specialty products
- B-8.02 Forms specialty products
- B-8.03 Assembles specialty products
- B-8.04 Finishes specialty products

Major Work Activity C - Installs air and material handling systems 35%

Task C-9 Prepares installation site 17%
- C-9.01 Performs on-site measurements
- C-9.02 Performs demolitions for renovations
- C-9.03 Installs penetrations and sleeves
- C-9.04 Installs supports and bases
- C-9.05 Installs hangers, cables, braces and brackets
Task C-10 Installs and connects chimneys, breeching and venting to exhaust appliances and mechanical equipment 15%
- C-10.01 Installs chimney
- C-10.02 Connects appliances or mechanical equipment to chimney and breeching
- C-10.03 Installs high efficiency appliances and mechanical equipment
Task C-11 Installs air handling system components 39%
- C-11.01 Installs air handling equipment
- C-11.02 Installs sheet metal ducts and fittings
- C-11.03 Installs dampers
- C-11.04 Installs fire and fire/smoke dampers
- C-11.05 Installs registers, grilles, diffusers and louvers
- C-11.06 Installs terminal boxes
- C-11.07 Installs coils
- C-11.08 Installs system component accessories
- C-11.09 Installs plenums
Task C-12 Installs material handling system components 12%
- C-12.01 Installs pneumatic and gravity material handling system components
- C-12.02 Installs mechanized material handling system components
Task C-13 Applies thermal insulation, lagging, cladding and flashing 8%
- C-13.01 Applies thermal insulation to components
- C-13.02 Applies lagging and cladding to components
- C-13.03 Applies flashing to components
Task C-14 Performs leak testing, air balancing and commissioning 9%
- C-14.01 Performs leak tests
- C-14.02 Performs testing, adjusting and balancing (TAB)
- C-14.03 Participates in the commissioning of air and material handling systems

Major Work Activity D - Installs roofing and specialty products 8%

Task D-15 Installs metal roofing and cladding/siding systems 27%
- D-15.01 Lays out roof and walls
- D-15.02 Installs insulation, isolation material and building envelope components
- D-15.03 Installs roofing and cladding/siding system components
- D-15.04 Seals exposed joints
- D-15.05 Installs decking
Task D-16 Installs exterior components 21%
- D-16.01 Prepares surface
- D-16.02 Fastens exterior components
Task D-17 Installs specialty products 52%
- D-17.01 Installs stainless steel specialty products
- D-17.02 Installs non-stainless steel specialty products
- D-17.03 Installs marine products (Not Common Core)

Major Work Activity E - Performs maintenance and repair 6%

Task E-18 Performs scheduled maintenance 38%
- E-18.01 Performs maintenance inspections
- E-18.02 Services components
Task E-19 Repairs faulty systems and components 62%
- E-19.01 Diagnoses system faults
- E-19.02 Repairs worn or faulty components
